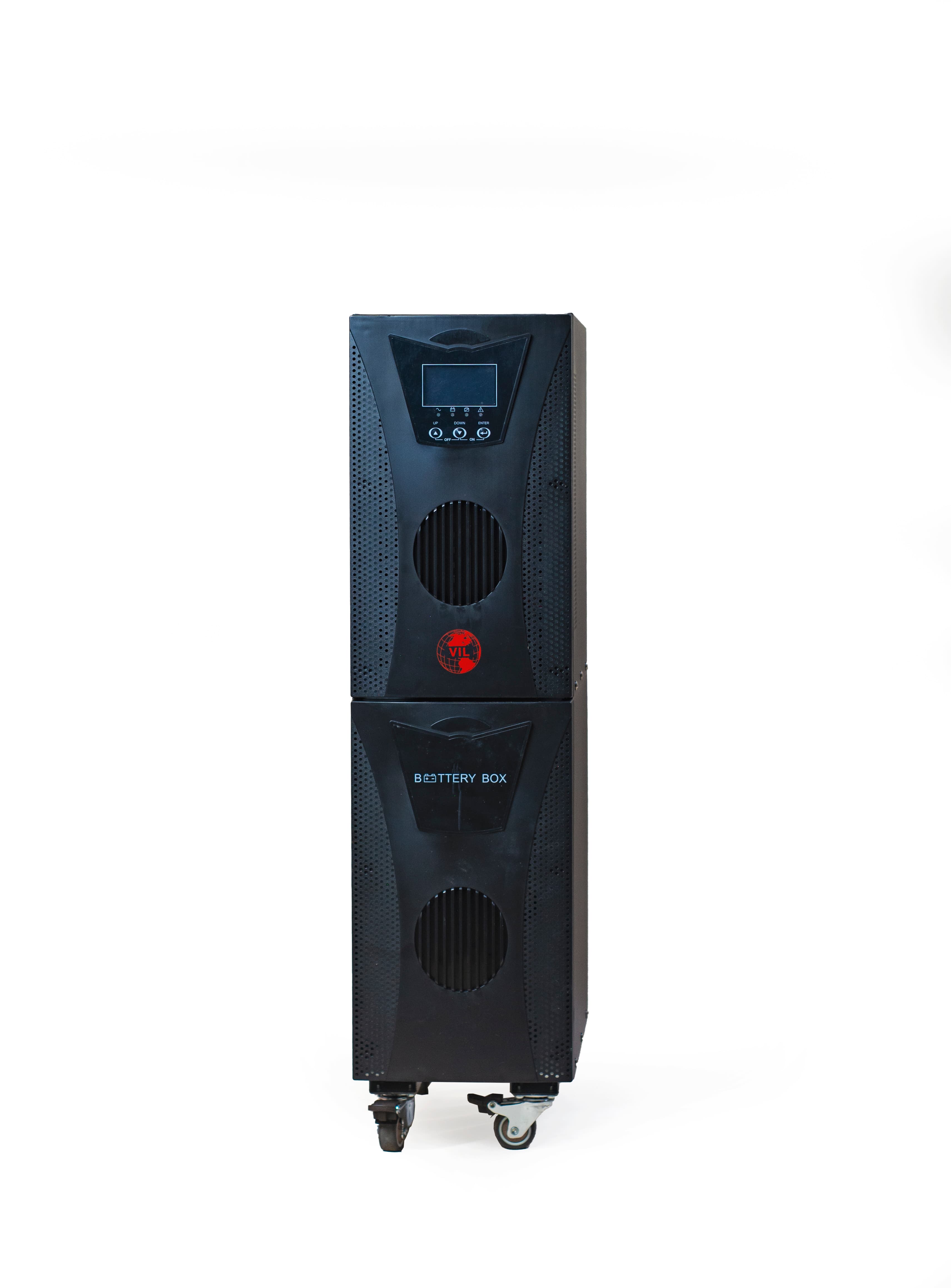

VIL 6KVA Online UPS
The VIL 6KVA Online UPS is designed to provide uninterrupted, clean power for critical equipment such as servers, medical devices, telecom systems, and office networks.
Built with double-conversion technology, it delivers stable output by converting utility power to DC and back to AC, eliminating voltage fluctuations, surges, and other electrical disturbances.
In the event of a power failure, the UPS automatically switches to battery mode without delay, ensuring your systems remain protected and fully operational. Compact, efficient, and dependable, the VIL 6KVA UPS is power you can trust.
FEATURES
High Performance: Double-conversion online technology for a clean, stable power supply.
Pure Sine Wave Output: Ensures smooth operation of sensitive equipment.
Fast Response Time: Seamless transition to battery mode with zero transfer time in synchronous mode.
Comprehensive Protection: Guards against overload, short-circuit, over-voltage, and low-voltage conditions.
User-Friendly Interface: Digital display for real-time monitoring and system diagnostics.
12-month warranty
| Capacity | 6KVA/4800W | |
|---|---|---|
| Phase | Single Phase | |
| Input Mode | ||
AC Mains Input Voltage | 145~280VAC | |
| Input Frequency Range | 46Hz ~ 54Hz or 56Hz ~ 64Hz | |
| Output | ||
| Output Voltage | 220 ± 10% | |
Voltage Range (DC Mode) | ± 2% (± 10% AC Mode) | |
Frequency Range (Sync Calibration Range) | 47Hz ~ 53Hz or 57Hz ~ 63Hz | 46Hz ~ 54Hz or 56Hz ~ 64Hz |
Frequency Range (DC Mode) | 50Hz ± 0.25Hz | 50Hz ± 0.1Hz or 60Hz ± 0.1Hz |
| Surge Ratio | 3:1 | |
| Harmonic Distortion | ≤3% THD (Linear Load) | |
| Transfer Time | ≤8ms | |
| Waveform | Pure Sine Wave | |
| Battery | ||
| Model Battery Type | 16 | |
Model Battery Charging Current | 7A | |
Model Battery Charging Voltage | 218.4Vdc ± 1% | |
| Appearance | ||
| LED or LCD | Load Level, Battery Capacity, AC Mode, Battery Mode, Bypass Mode, Fault Indication | |
| Alarm | ||
| Battery Mode | Alarm beeps every four seconds | |
| Low Battery | Alarm beeps every second | |
| Overload | Alarm beeps every second | |
| Fault | Alarm beeps continously | |
| Enviroment | ||
| Temperature and Humidity | Humidity 20-90%, temperature 0 to 40ºC (non-condesing) | Humidity 0-95%, temperature 0 to 40ºC |
| Noise (dB) | < 40dB at one meter distance | <45dB at one meter distance |
| Dimension | 500*192*348mm | |
| Weight (Kg) | 28 |
