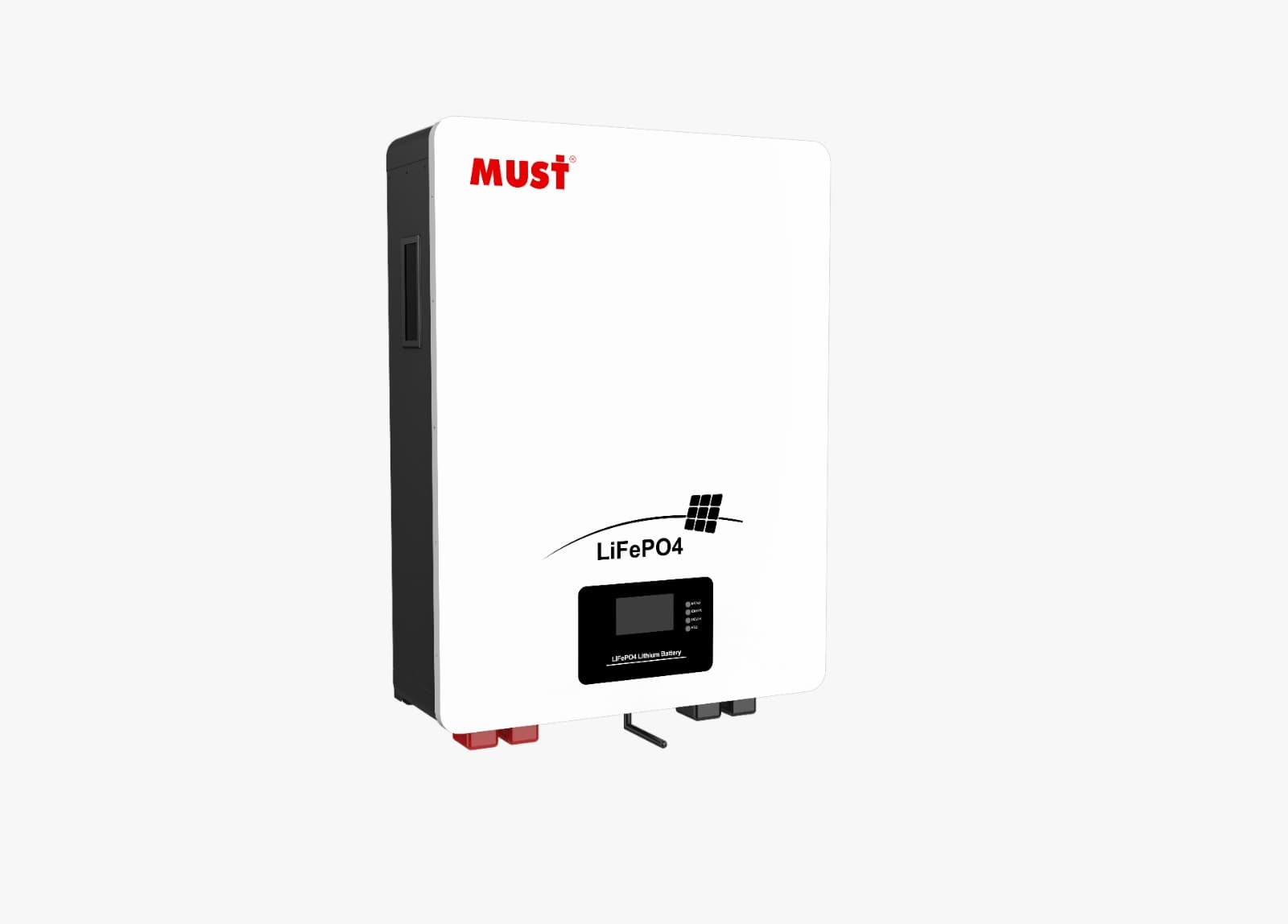

LP1600 SERIES
5.12~10.24KWH | WIFI
The LP1600 Series offers a versatile and reliable power solution. Combine up to 15 units for energy capacities ranging from 2560Wh to 10240Wh. With WIFI Remote Monitoring, stay connected and in control. Whether it’s wall-mounted convenience, stacked mounting (up to 5 units) for space efficiency, or rack-mounted for industrial power management, this series offers seamless adaptability.
Features of the 10KWH & 5KWH MUST lithium Batteries
2-in-1: Floor Mounted, Wall Mounted
Large Capacity, high power output
Safest lithium-iron phosphate battery cell with high energy density
Modular design supports up to 15 units in parallel
Support CAN & RS485 communication
Local monitoring via LCD monitor
Built-in WiFi Smart BMS Module
| Technical Data | LP16-24100 | LP16-48100 | LP16-48200 | |
|---|---|---|---|---|
| Nominal Volatge | 200Ah | 100Ah | 200Ah | |
| Nominal Energy | 5120Wh | 5120Wh | 102040Wh | |
| Life Cycle | 6000 Cycles @ 80% 25ºC | |||
| Recommended Charge Voltage | 29.2V | 58.4V | ||
| Recommended Charge Current | 40A | 20A | 40A | |
| End of Discharge Voltage | 22V | 44V | ||
| Standard Method | Charge | 40A | 20A | 40A |
| Discharge | 100A | 50A | 100A | |
Maximum Continous Current | Charge | 150A | 100A | 150A |
| Discharge | 150A | 100A | 150A | |
| BMS Cut-Off volatge | Charge | 29.2V (3.65/Cell) | 58.4V (3.65V/Cell) | |
| Discharge | 22.0V (2s) (2.75V/Cell) | 44.0V (2.75V/Cell) | ||
| Temperature | Charge | 0 ~ 45ºC | ||
| Discharge | -10 ~ 55ºC | |||
| Storage Temperature | -5 ~ 35ºC | |||
| Shipment Voltage | ≥25.6v | ≥51.2V | ||
| Module Parrallel | Up to 15 Units | |||
| Communication | CAN2.0/RS232/RS485 | |||
| IP Protection Level | IP21 | |||
| Case Material | SPCC | |||
| Machine Dimension (H*W*D) (mm) | 486.5*442*250 | 625.5*442*117 | 686.5*442*250 | |
Package Dimesion (W*H*D) (mm) | Carton box | 557*547*300 | 688*557*227 | non |
| Wooden box | 555*565*410 | 696*565*335 | 759*569*391 | |
| N.W (Kg) | 44 | 45 | 80 | |
| G.W (kg) | Carton box | 48 | 48 | non |
| Wooden box | 57 | 58 | 97 | |
| *Variations in dimensions and weights may occur due to production batches | ||||
Charge Retention And Capacity Recovery Capabilities | Standard Charge the battery, and then put aside at room temperature for 28d or 55ºC for 7d, charge retention rate ≥ 90%, Recovery rate of charge≥90% | |||
| Warranty | 5 years | |||
| Certification & Standard | CE-EMC (EN 61000-6-3: 2007 +A1: 2011+AC: 2012 EN IEC 61000-6-1:2019) IEC62619-1:2018; IEC62619:2022; IEC62619:2017; UN38.3/ MSDS |
