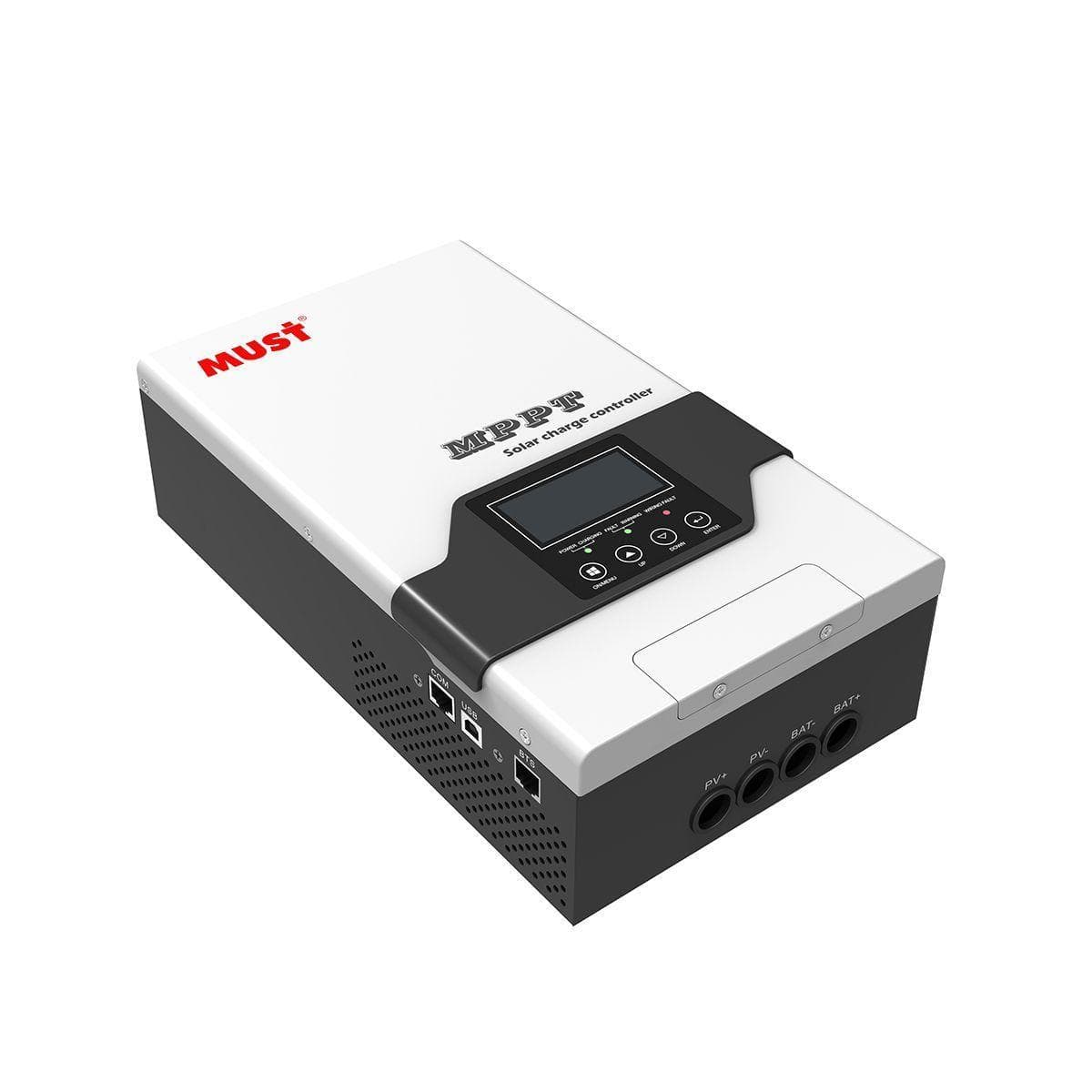

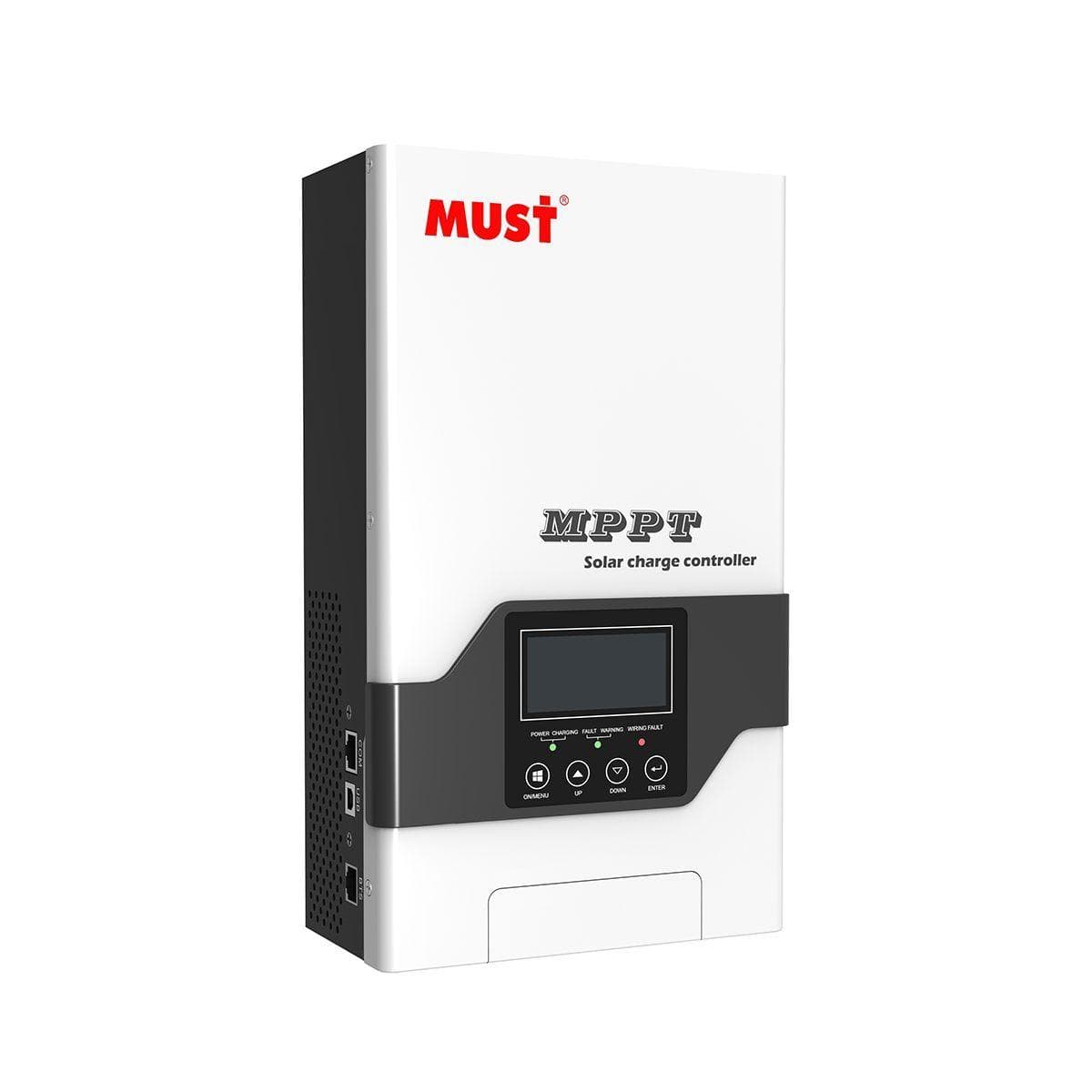

PC1800F Series (100A)
MPPT Solar Charge Controller
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.
Features:
■ LCD display, easy to operate on the LCD screen
■ Multi-stage charging (3-stage charging, parallel charging, and equalized charging function)
■ Maximum Solar Input Voltage: 245V
■ BTS – Battery remote temperature sensor terminal
■ Enable to charge Li-thium, Gel, lead-acid battery
■ With RS485 & USB communication port
■ Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Overcharging, Output short circuit
| MODEL | PC18-10025F | ||
|---|---|---|---|
| Nominal Battery System Voltage | 12V / 24V / 48VDC (Auto detection); 36V (Setting) | ||
| CONTROLLER INPUT | |||
| Battery Voltage | 12V / 24V / 36V / 48V | ||
| Maximum Solar Input Voltage | 12V (VBAT) | 100V | |
| 24V (VBAT) | 245V | ||
| 36V (VBAT) | 245V | ||
| 48V (VBAT) | 245V | ||
| PV Array MPPT Voltage Range | 12V (VBAT) | 15-95V | |
| 24V (VBAT) | 30~230V | ||
| 36V (VBAT) | 45~230V | ||
| 48V (VBAT) | 60~230V | ||
| Maximum Input Power | 12V (VBAT) | 1560W | |
| 24V (VBAT) | 3120W | ||
| 36V (VBAT) | 4680W | ||
| 48V (VBAT) | 6250W | ||
| BATTERY | |||
| Charging Set Points | Flooded Battery | Absorption Stage | 14.2V / 28.4V / 42.6V / 56.8V |
| Float Stage | 13.7V / 27.4V / 41.1V / 54.8V | ||
AGM (Default) | Absorption Stage | 14.4V / 28.8V / 43.2V / 57.6V | |
| Float Stage | 13.7V / 27.4V / 41.1V / 54.8V | ||
| Over-charging Voltage | 15.5V / 30.0V / 45.0V / 60.0V | ||
| Over-charging Comeback Voltage | 14.5V / 29.5V / 44.5V / 59.0V | ||
| Battery Defect Voltage | 10.0V / 17.0V / 25.5V / 34.0V | ||
| Temperature Compensation Conefficient | -5mv / °C /cell (25°C vef) | ||
| Peak Conversion Efficiency | 98% (MPPT Efficiency 99%) | ||
| Maximum Battery Current | 100A | ||
| Maximum DC load current | 100A | ||
| Max Charging Current | 100amps continuous @ 40°C ambient | ||
| DISPLAY & PROTECTION | |||
| Protections | Solar high voltage disconnect/ Solar high voltage reconnect/ Battery high voltage disconnect Battery high voltage reconnect/ High temperature disconnect/ High temperature reconnect | ||
| MECHANICAL SPECIFICATIONS | |||
| Machine Dimension (W*H*D)(mm) | 165*284*97 | ||
| N.W(kg) | 4 | ||
| OTHER | |||
| Mounting | Wall mount | ||
| Environmental Rating | Indoor | ||
| Enclosure | IP20 | ||
| Radiating Mode | Fan cooling | ||
| Operating Temperature Range | -10~55°C | ||
| Ambient Humidity | 0~90% relative humidity (non-condensing) | ||
| Altitude | ≤3000m | ||
| CERTIFICATION & STANDARDS | |||
UKCA (BS IEC62109-1:2010)+CE-LVD(EN IEC62109-1:2010) CE-EMC+LVD (EN6100-6-3:2007+A1:2011,EN6100-6-1:2019+EN IEC62109-1:2010) |
