A solar charge controller regulates the voltage and current from your solar panels to your batteries, preventing overcharging and ensuring optimal performance.

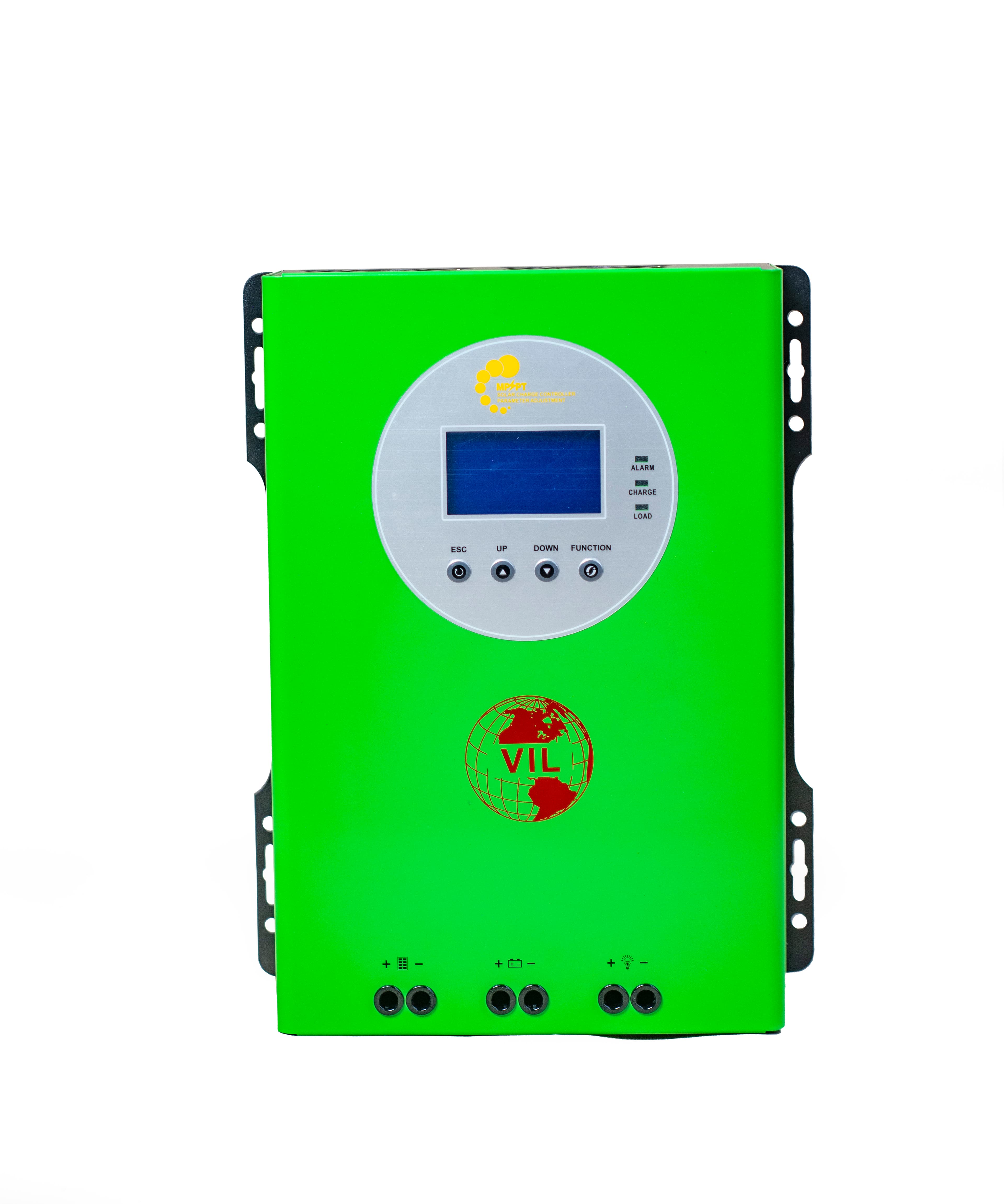

The VIL 100A/96V MPPT Charge Controller is designed for large-scale solar systems, offering intelligent protection, high conversion efficiency, and stable battery charging, and is built for reliability and intelligent solar management Whether you're powering a home, hybrid system, or commercial setup, this charge controller keeps your batteries healthy and your solar power flowing efficiently.
FEATURES
Supports lithium, gel, flooded & deep-cycle batteries
High-efficiency MPPT (≥99.5%)
Built-in LCD display with intelligent controls
Multiple protection modes: over-voltage, reverse polarity, overload, overheating
Remote monitoring (Wi-Fi/GPRS)
12 months warranty
| MODEL | 100A |
|---|---|
| SYSTEM VOLTAGE | 96V |
| NOMINAL CURRENT | 100A |
| Charging Mode | MPPT Maximum Power Point Tracking |
Charging Mode | Three stages: Constant Current, Constant Voltage, Floating Charge |
| PV Input maximum open circuit Volatge (VOC) | 250VDC |
| Starting time | ≤10s |
Dynamic Response Recovery Time | ≤500us |
| Static Power | ≤8W |
MPPT Tracking Efficiency | ≥99.5% |
Overrall Efficiency | ≥98% |
The controller system identifies the operating Voltage Range | 72~128V |
Operating Voltage Range Of Maximum Power Point | 128~250V |
| Solar Panel Rated Input Power | 10400W |
| Display | HD LCD Backlight Display |
| Protection | Input and Output over&low-Voltage Protection, input and output anti-reverse protction,over-temperature protection, load over-current protection |
Temperature Compensation Coefficient | -3mV/ºC/2V |
Working Temperature | -20ºC ~ +50ºC |
Storage Temperature | -40ºC ~ +70ºC |
Acoustic Noise(dB) | ≤50dB |
| Humidity | 0~90%RH |
Working Altitude | 0~3000M |
Communication Type | RS485 |
Suggested Wire Specification | 2AWG/35mm2 |
Dimension L*W*H (MM) | 415*311*173 |
| Net Weight (KG) | 5.16KG |
