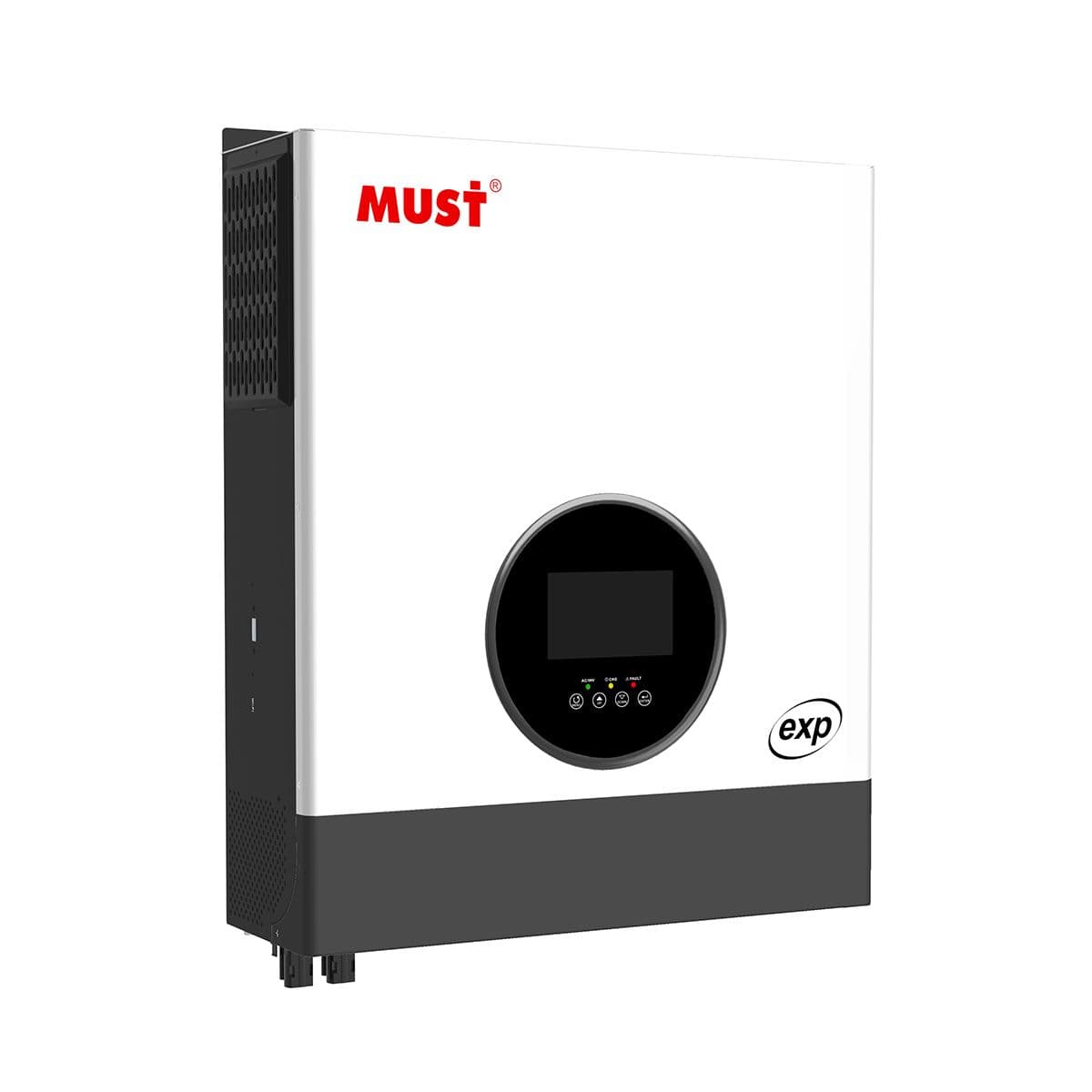

PV1800 VPM Ⅱ Series (3KW)
High Frequency Off Grid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, MPPT 40A/60A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers userconfigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on
different applications.
Features:
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Bult in MPPT 40A/60A solar charge controller
■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485, CAN monitoring function
■ WIFI remote monitoring (optional)
■ Compatible with a generator
■ PV/ AC activation function
■ Smart battery pack BMS communication function (CAN Port)
| MODEL | PV18-3224 VPM ll |
|---|---|
| Default Battery System Voltage | 24VDC |
| INVERTER OUTPUT | |
| Rated Power | 3200VA/3200W |
| Surge Power | 6400VA |
| Waveform | Pure sine wave |
AC Voltage Regulation (Batt.Mode) | 230VAC |
| Inverter Efficiency(Peak) | 90%~93% |
| Transfer Time | 10ms(UPS / VDE4105) / 20ms(APL) |
| AC INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| BATTERY | |
| Normal voltage | 24VDC |
| Floating Charge Voltage | 27.4VDC |
| Overcharge Protection | 30VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 160VDC |
PV Array MPPT Voltage Range (Typ.) | 30~128VDC |
| Standby Power Consumption | 2W |
| Maximum PV Array Power | 1600W |
| Maximum Solar Charge Current | 60A |
| Maximum Efficiency | 98% |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 120A |
| MECHANICAL SPECIFICATIONS | |
Machine Dimension (W*H*D) (mm) | 254.5*367.4*103 |
Package Dimension (W*H*D) (mm) | 436*331*189 |
| N.W (kg) | 5.5 |
| G.W (kg) | 6.5 |
| OTHER | |
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -15°C -60°C |
| Warranty | 2years |
| CERTIFICATION & STANDARDS | |
| CE-EMC+LVD(EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2) |
