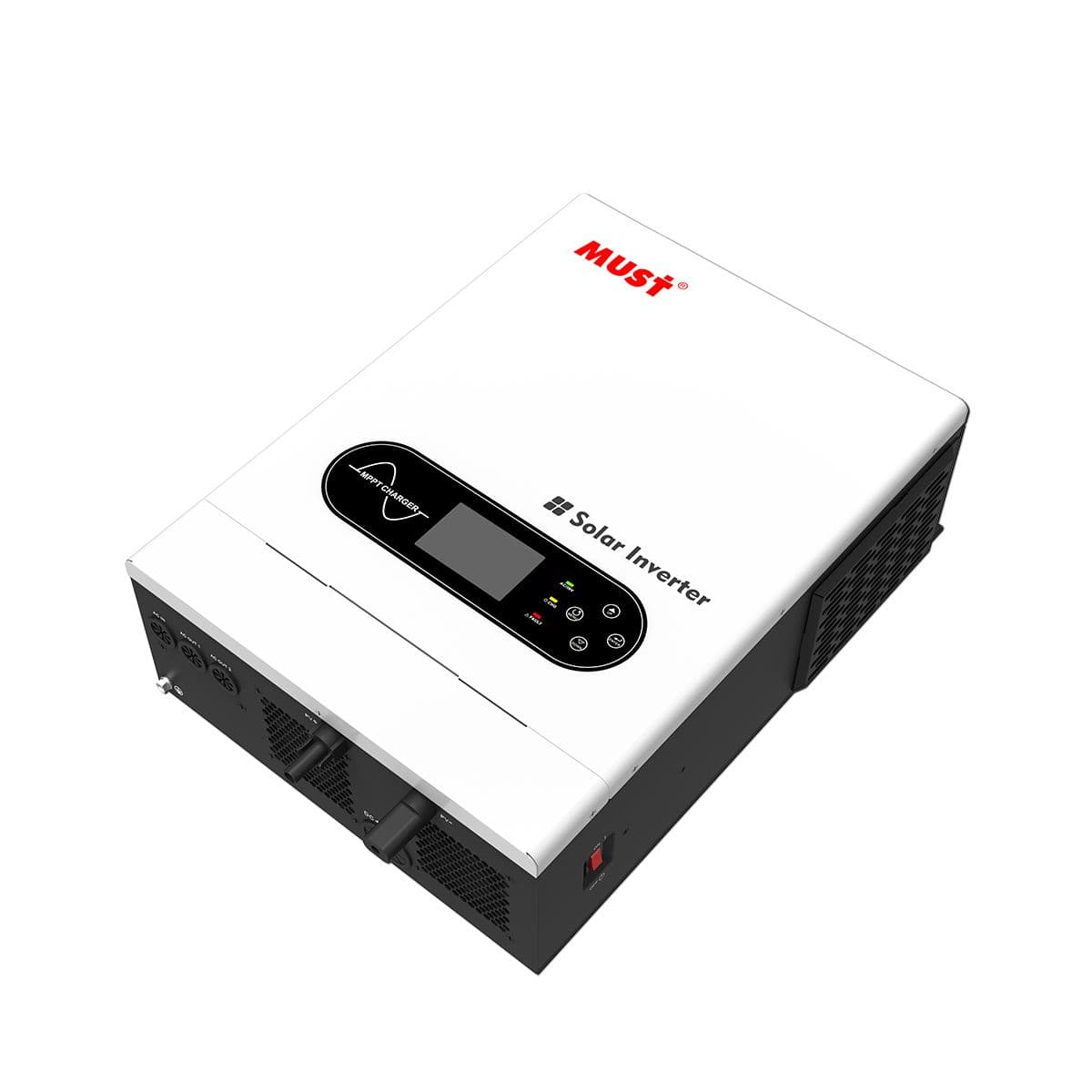

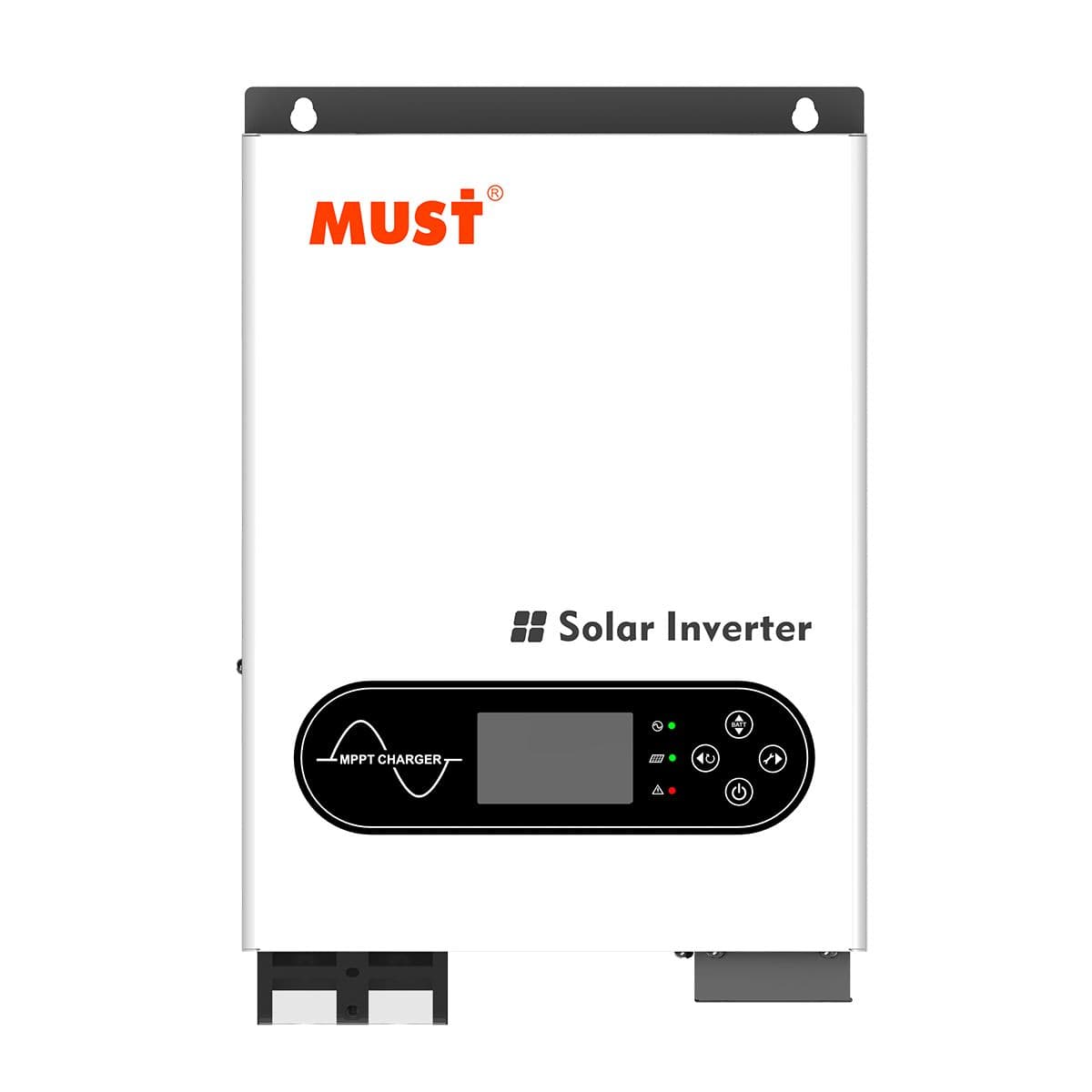

PV1800 ECO Series (5.5kW)
High Frequency Off Grid Solar Inverter 5.5KW | PV 450|
Dual output | 48V
PV1800 ECO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 ECO Series can run without battery. The Maximum PV input voltage can reach 450V, which can help customers make full use of solar energy.
FEATURES
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
Wide PV input voltage range
Can provide the power to the load without a battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit, and Deep discharge protection
Cold start function
Support RS485, CAN monitoring function
Dual outputs for smart load management
Can communicate with lithium batteries (CAN port)
| MODEL | PV18-5548 ECO |
|---|---|
| Default Battery System Voltage | 48VDC |
| INVERTER OUTPUT | |
| Rated Power | 5500VA/5500W |
| Output Channel | Dual |
| Surge Power | 11000W |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) |
| Inverter Efficiency(Peak) | >90% |
| Transfer Time | Typical < 10ms , 20ms max |
| AC INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| BATTERY | |
| Normal voltage | 48VDC |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Input Voltage | 450VDC |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) |
| Maximum PV Array Power | 6000W |
| PV Array MPPT Voltage Range(Typ.) | 60~360VDC |
| PV maximum input current | 28A |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 100A |
| MECHANICAL SPECIFICATIONS | |
| Machine Dimension (W*H*D)(mm) | 318*454*122.5 |
| Package Dimension (W*H*D)(mm) | 544.5*410*210 |
| N.W (kg) | 9.0 |
| G.W (kg) | 10.5 |
| OTHER | |
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -15°C -60°C |
| Warranty | 2years |
| CERTIFICATION & STANDARDS | |
| CE |
