MUST INVERTERS DESCRIPTION

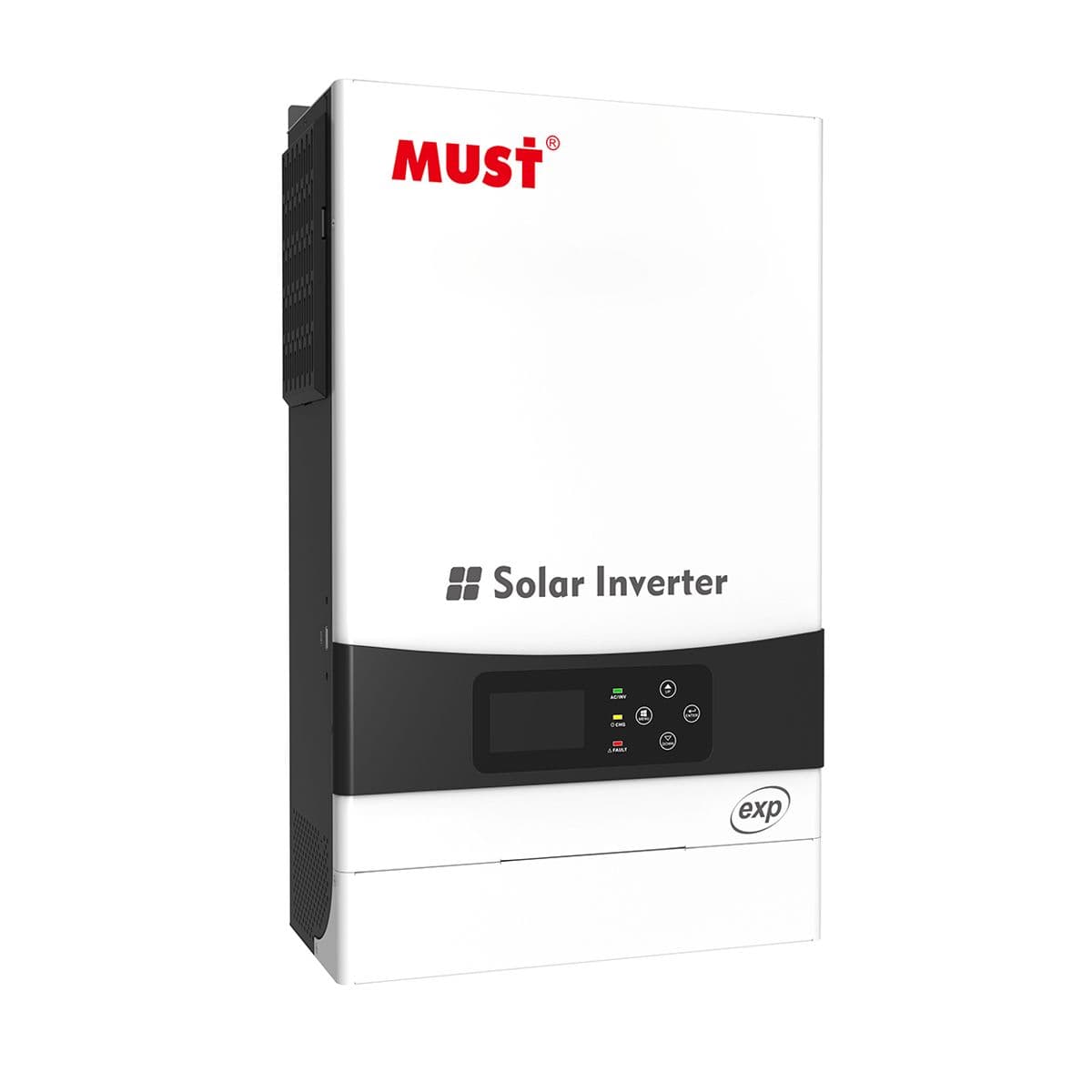

6KW/48V HIGH FREQUENCY INVERTER
On/Off Grid Hybrid Solar Inverter DC 24/48V | PV 500V | MPPT 100/120A
PH1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PH1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 90~430V, which can help customers make full use of solar energy.
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 500V
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)
With BMS lithium battery communication function
With AC/PV lithium battery activation function
Dual outputs for smart load management
| MODEL | PH19-6048 EXP |
|---|---|
| Nominal Battery System Voltage | 48VDC |
| INVERTER OUTPUT | |
| Rated Power | 6000VA/6000W |
| Surge Power | 12000W |
| Waveform | Pure sine wave |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) |
| Inverter Efficiency(Peak) | 90% |
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) |
| AC INPUT | |
| Voltage | 230VAC±5% |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) |
| Frequency Range | 50Hz / 60Hz(Auto sensing) |
| BATTERY | |
| Normal voltage | 48VDC |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV input Current | 27A |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) |
| Maximum PV Array Power | 6000W |
| PV Array MPPT Voltage Range | 120~430 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| MECHANICAL SPECIFICATIONS | |
| Machine Dimension (W*H*D)(mm) | 309*505*147 |
| Package Dimension (W*H*D)(mm) | 603*260*400 |
| N.W(kg) | 12.9 |
| G.W(kg) | 13.8 |
| OTHER | |
| Humidity | 5% to 95% Relative humidity (Non-condensing) |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -15℃ ~60℃ |
| CERTIFICATION & STANDARDS | |
CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) EN IEC62368-1:2020+A11:2020 EN IEC62368-1:2018 Rohs-(2011/65/EUand2015/863/EU) |
