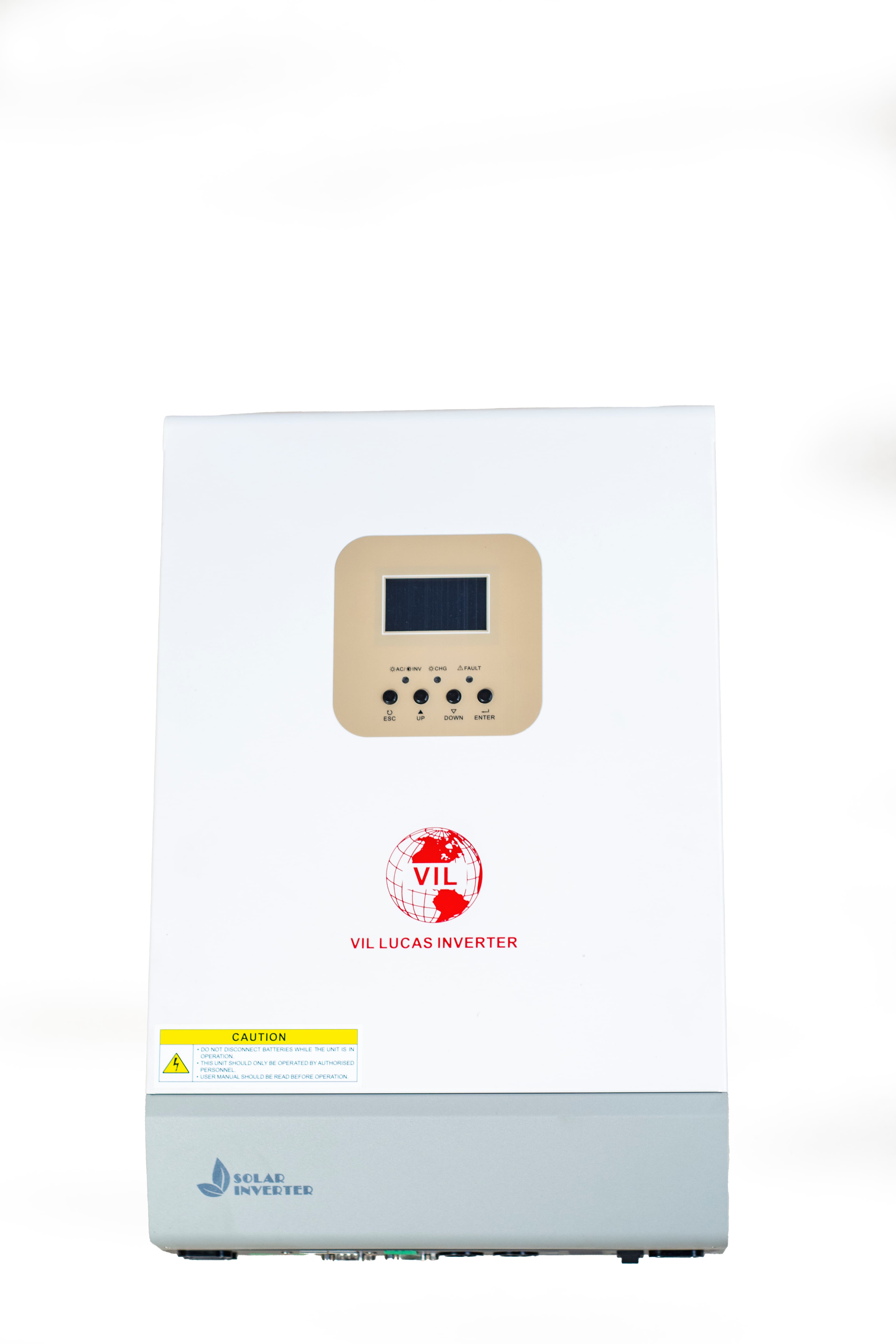

The VIL Lucas 5.5kVA High Frequency Hybrid Inverter is built with German technology and advanced energy management for exceptional performance.
With a high-voltage 500VDC solar input, it minimizes cable losses, supports longer PV strings, and boosts overall efficiency.
The parallel function lets you connect up to 9 units for higher capacity or redundancy — perfect for large-scale residential, commercial, or industrial systems.
Equipped with Multi-Power Point Tracking (MPPT), it maximizes solar energy capture even under variable sunlight conditions.
A pure sine wave output guarantees smooth, safe operation for sensitive electronics.
The intelligent battery management system (BMS) optimizes charging, extends battery life, and supports Lithium, GEL, and Tubular batteries for complete flexibility.
Compact, quiet, and built for long-lasting performance, it ensures uninterrupted power for any application.
FEATURES
• Pure Sine Wave Output – Stable, clean power for sensitive devices.
500VDC High Voltage Input – Reduced losses, longer solar string capability.
• Parallel Function – Connect up to 9 units for greater capacity or redundancy.
• High Frequency Design – Compact, lightweight, and efficient.
• Intelligent Battery Management System (BMS) – Optimizes battery performance and lifespan.
• Multi Power Point Tracking (MPPT) – Maximum solar energy harvesting.
• LCD Display – Real-time monitoring and performance tracking.
• Overload & Short Circuit Protection – Enhanced system safety.
• Battery Compatibility – Lithium, GEL, and Tubular batteries supported.
• Remote Monitoring – Manage your system from anywhere.
• 12-Month Warranty – Quality assurance and peace of mind.
| Model | IV5548SMHBG | ||
|---|---|---|---|
| Input | Input format | L+N+PE | |
| Rated input voltage | 220/230/240VAC | ||
| Voltage range | 90-280VAC±3V（normal mode) 170-280VAC±3V（UPS mode） | ||
| Frequency range | 50Hz/60Hz(Adaptive) | ||
| Output | Rated Power | Battery Inverter | 5500W |
| Photovoltaic Inverter | 6500W | ||
| Output voltage | 220/230/240VAC±5% | ||
| Output frequency | 50/60Hz±0.1% | ||
| Waveform | Pure sine wave | ||
| Switching time (adjustable) | Computer equipment 10ms, home appliances 20ms | ||
| Peak Power | 11000VA | ||
| Overload capacity | Battery Mode：11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load | ||
| Grid-connected operation | Output voltage | 220/230/240VAC | |
| Grid feeding voltage range | 195-253VA | ||
| Grid feeding frequency range | 49-51±1Hz/59-61±1Hz | ||
| Nominal output current | 23.9A | ||
| Power factor range | >0.99 | ||
| Maximum conversion efficiency (DC/AC) | 98% | ||
| Battery | Rated voltage | 48Vdc | |
| Constant voltage charging voltage (configurable) | 56.4Vdc | ||
| Float charging voltage (configurable) | 54Vdc | ||
| charger | PV charging method | MPPT | |
| Maximum input power of PV | 7500W | ||
| MPPT input voltage range | 60-500Vdc | ||
| Optimal Vmp operating range | 300~400Vdc | ||
| Maximum PV input voltage | 500Vdc | ||
| Maximum PV input current | 27A | ||
| Maximum PV charging current | 100A | ||
| Maximum mains charging current | 100A | ||
| Maximum charging current | 100A | ||
| display | LCD Interface | Can display operation mode/load/input/output, etc. | |
| interface | RS232 | Baud rate 2400 | |
| Expansion slot communication interface | Lithium battery BMS communication card, WIFI card, dry contact card, etc. | ||
| Parallel interface | Parallel (network) function | ||
| Environmental parameters | Operating ambient temperature | -10~50℃ | |
| Operating environment humidity | 20%~95%(No condensation) | ||
| Storage temperature | -15~60℃ | ||
| Altitude | The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040 | ||
| noise | ≤50db | ||
| Physical parameters | Depth × width × height (mm) | 495*312*135 | |
| Weight (for reference) KG | 8.5 | ||
| Standards and certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
